ASM Eave Protection and Underlayment
ASM Eave Protection and Underlayment
| RoofStar Guarantee Standards are blue-linked |
ASM Details
- Click below for a printable version of this page.

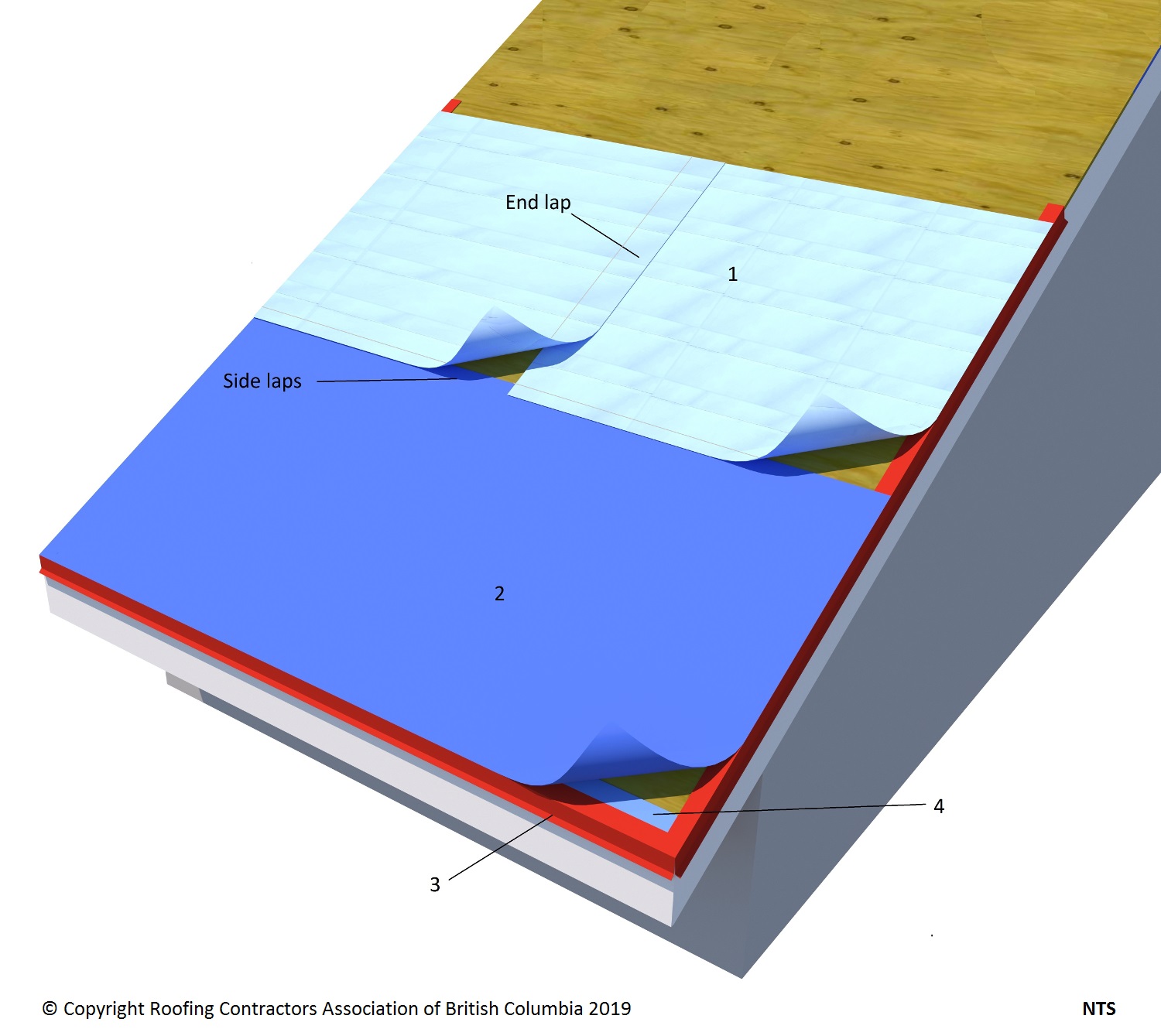

1 WORK INCLUDED
- (1) Underlayment
- Proprietary underlayment installed perpendicular to the slope with 50 mm (2") minimum side laps and 100 mm (4") minimum end laps.
- (2) Ice and Water Protection
- One ply of accepted self-adhered modified bituminous membrane.
- (3) Edge Metal Flashing
- Installed to manufacturer's printed instructions.
- (4) Metal flashing underlayment/separation membrane
- required for metal flashings installed on wood substrates.
- Note:
- This application pertains only to slopes 1:3 (4" in 12") or greater. For slopes less than 1:3, see Construction Detail ASM 8.1.2.
- Slip sheet not shown for clarity
2 RELATED WORK BY OTHERS
- (A) Acceptable Deck
NOTE: Refer to RoofStar Guarantee Standards for additional requirements.
RoofStar Guarantee Standards for ASM Roof Assemblies
