TS Details:E4.7.12 (Slate - Pipe Flashing)
TS Details:E4.7.12 (Slate - Pipe Flashing)
Division D - Construction Details
TS Details:E4.7.12 (Slate - Pipe Flashing)
| Notice to Reader | |
| Images used in a Construction Detail are representative and not prescriptive. Nor are they necessarily drawn to scale. Rather, they are provided to visually convey the requirements of the Standard they represent. Unless otherwise required by the Standard, dimensions, the selection of materials and their application remains the responsibility of the Design Authority. The full text of the referenced requirements in the Standard may be read by using the blue hyperlinks | |
Slate Roofing Details

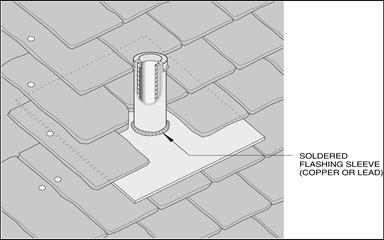

Lead pipe flashings work well with slate. Pipe flashings are laid over preceding courses and under successive courses of slate.
NOTE: See the Standard for additional requirements.
