Division D - Construction Details
WP Details:F1.7.1(Wearing Course - Concrete Pavers)
| Notice to Reader | |
| Images used in a Construction Detail are representative and not prescriptive. Nor are they necessarily drawn to scale. Rather, they are provided to visually convey the requirements of the Standard they represent. Unless otherwise required by the Standard, dimensions, the selection of materials and their application remains the responsibility of the Design Authority. The full text of the referenced requirements in the Standard may be read by using the blue hyperlinks | |
Waterproofing Details for Plazas, Promenades and Terraces

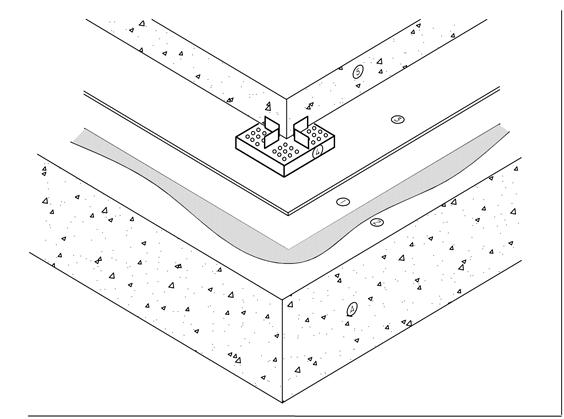

1 WORK INCLUDED
- (1) Primary Waterproofing Membrane
- Fully adhered to acceptable substrates (concrete slab shown), installed as per the RoofStar Guarantee Standards for Waterproofing Plazas, Promenades & Terraces and Membrane Manufacturer's installation specifications.
- (2) Membrane Primer or Adhesive
- Proprietary primer or adhesive, application method and quantities for substrate type as directed by membrane manufacturers published application specifications.
- (3) Protection Board/Mat
- Proprietary membrane protection board or drainage board approved by membrane manufacture, compatible with waterproofing membrane system, and compliant with the RoofStar Guarantee Standards for Waterproofing Plazas, Promenades & Terraces
- (4) Pedestal
- Proprietary (purpose-made) pedestals, with integral spacer ribs for uniform spacing between pavers that provide a minimum 12.5 mm (1/2") of vertical separation layer for airflow and levelling. Alternative: drainage boards with sand and gravel beds for unit masonry designed to provide permeable layer and leveling.
- (5) Pavers
- Designed to support predicted live loads, maximum size 600mm (24") by 600mm (24").
2 WORK BY OTHERS
- (A) Acceptable Deck
- Concrete slab depicted.
NOTE: See the Standard for additional requirements.
