Asphalt Shingles - Flashing a Masonry Chimney



Division D - Construction Details


Asphalt Shingles | Flashing a Masonry Chimney ( Article 12.3.2.4.)

Notice to Reader
Images used in a Construction Detail are representative and not prescriptive, and are not necessarily drawn to scale. They are intended to support the related Standard (Ref. Division A, Article 2.2.1.2.).

The reader may link to the related Article in the detail title, or link to the Standard as it relates to a specific element in the detail. All hyperlinks are displayed blue text.

Asphalt Shingle Details

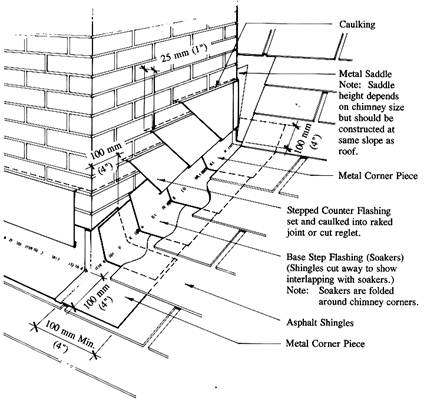

Slope of 1:3 (4" in 12") or steeper


NOTE: See the Standard for additional requirements.


Back to Asphalt Shingle System Details
