Asphalt Shingles - Open Valley



Division D - Construction Details


Asphalt Shingles | Open Valley ( Article 10.3.5.3.)

Notice to Reader
Images used in a Construction Detail are representative and not prescriptive, and are not necessarily drawn to scale. They are intended to support the related Standard (Ref. Division A, Article 2.2.1.2.).

The reader may link to the related Article in the detail title, or link to the Standard as it relates to a specific element in the detail. All hyperlinks are displayed blue text.

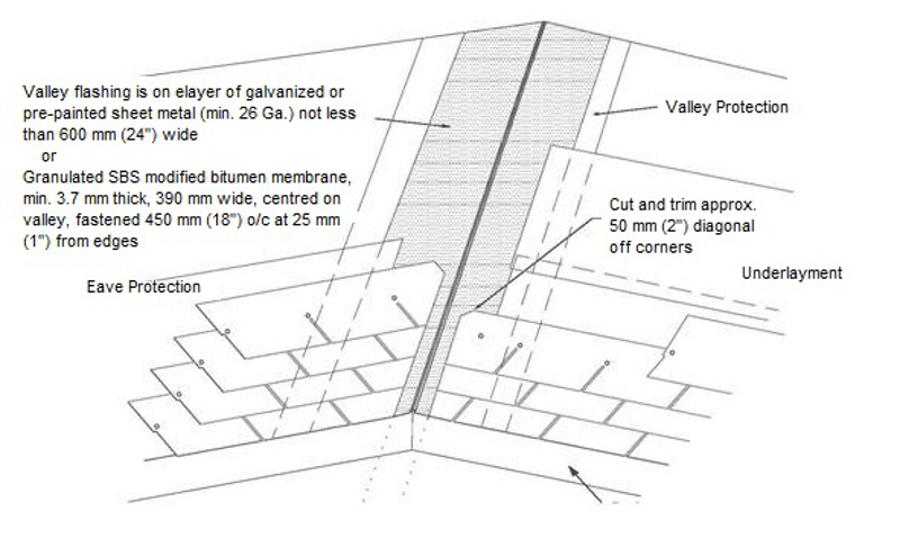

Asphalt Shingle Details


NOTE: See the Standard for additional requirements.
