Asphalt Shingles - Valley Intersection with Ridge



Division D - Construction Details


Asphalt Shingles | Valley Intersection with Ridge ( Article 10.3.5.9.)

Notice to Reader
Images used in a Construction Detail are representative and not prescriptive, and are not necessarily drawn to scale. They are intended to support the related Standard (Ref. Division A, Article 2.2.1.2.).

The reader may link to the related Article in the detail title, or link to the Standard as it relates to a specific element in the detail. All hyperlinks are displayed blue text.

Asphalt Shingle Details
Click on any image to expand it

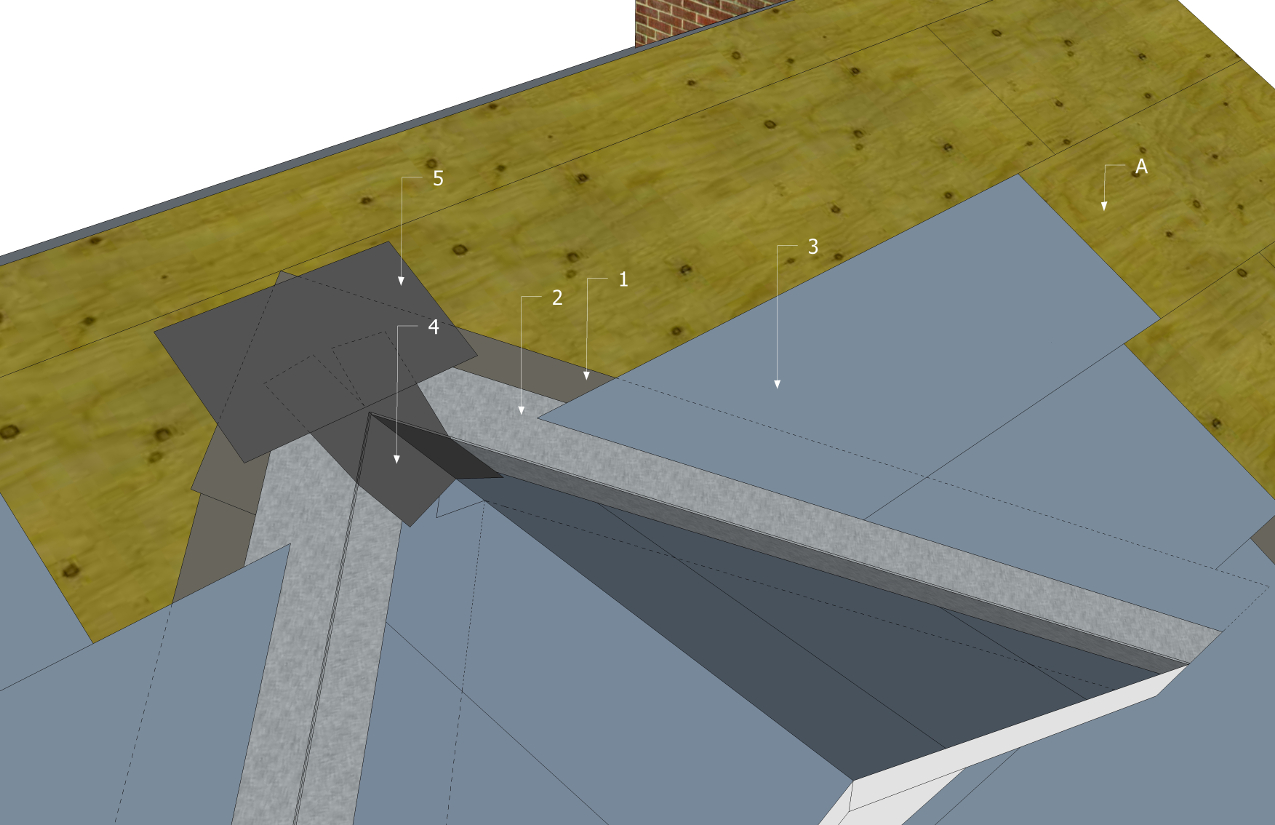

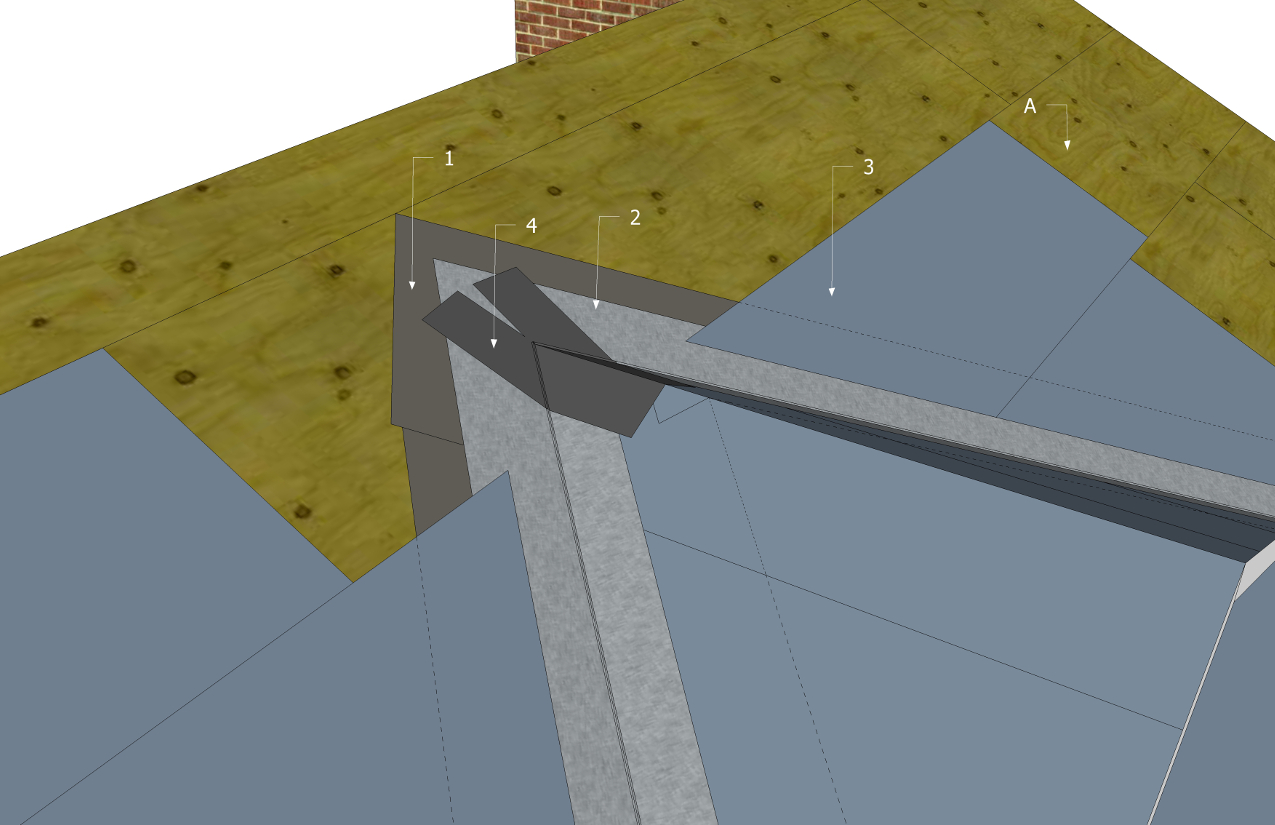

ASh 10.5.1-1 CD.jpg ASh 10.5.1-2 CD.jpg

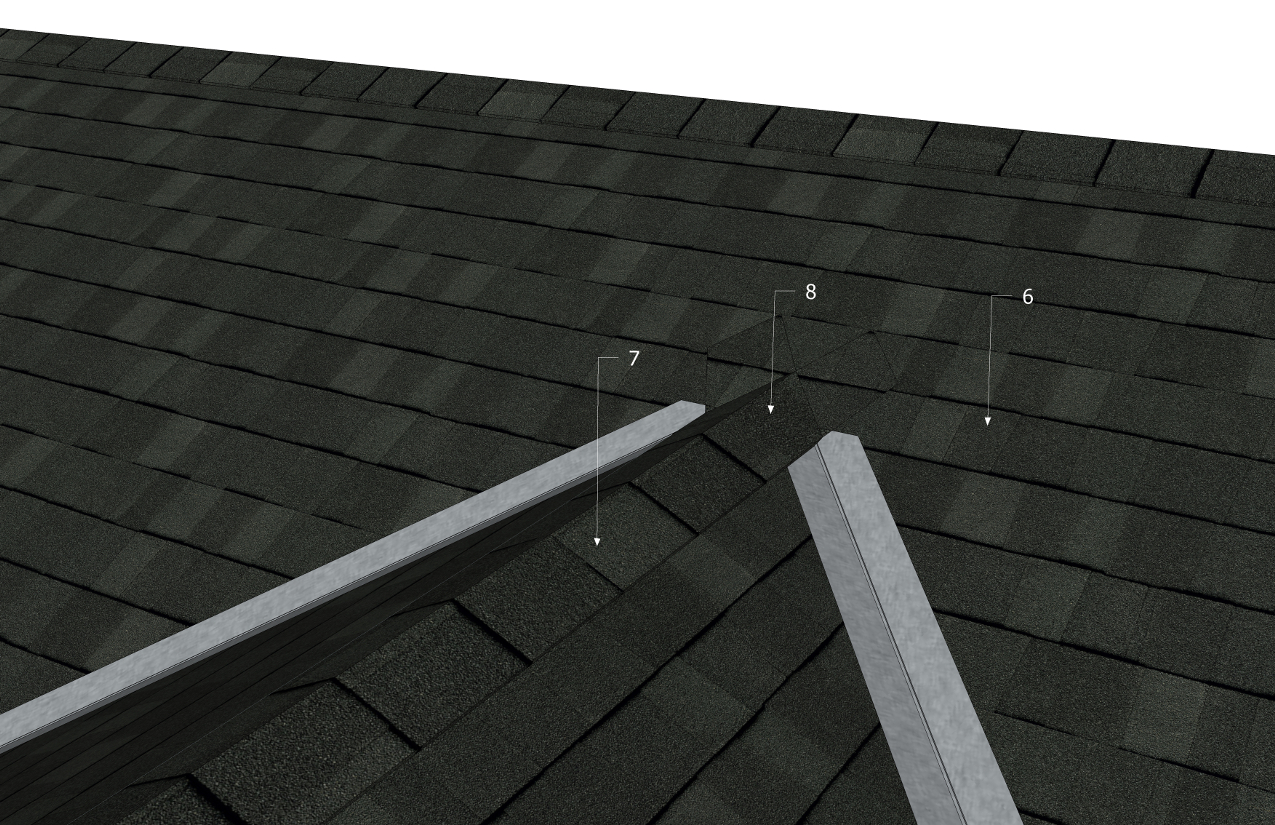

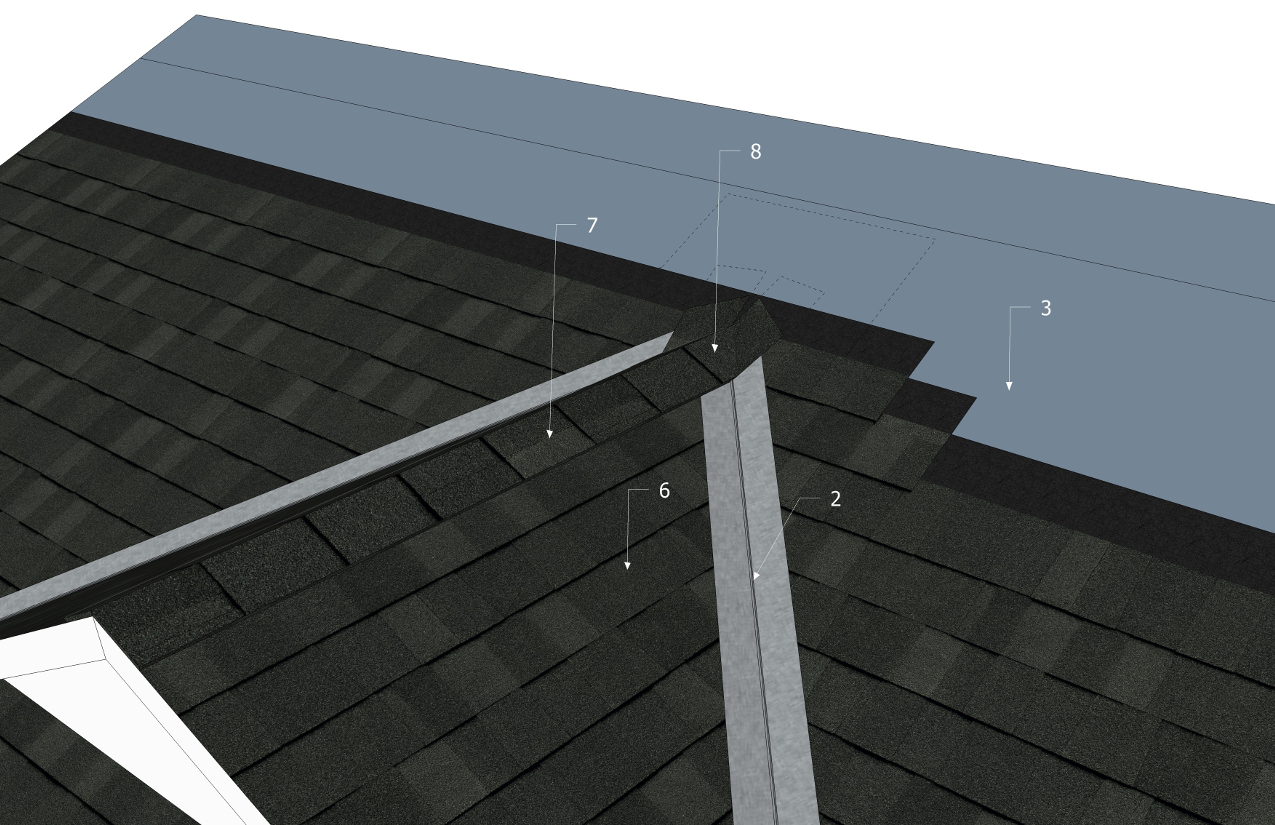

ASh 10.5.1-3 CD.jpg ASh 10.5.1-4 CD.jpg

1 WORK INCLUDED

(1) Valley Protection Membrane
Applied beneath the metal valley flashing.
(2) Valley Metal Flashing
Required for open valleys.
(3) Underlayment
Required, and installed to overlap the Valley Protection Membrane and the Valley Metal Flashing. Install ‘shingle-style’, following the requirements for side and end laps; use acceptable fasteners, or adhere (if a self-adhering membrane) in keeping with the manufacturer’s published requirements.
(4) Lower Membrane Patch
Required to cover the joint where the ridgeline of one roof joins the sloped plane of another. Cut as illustrated and apply to the slope; the patch must be cut large enough to extend upslope at least 150 mm (6”), but must not exceed the exposure of the ridge cap shingles.
(5) Upper Membrane Patch
Required to overlap the Lower Membrane Patch, ‘shingle-style’, by at least 50 mm (2”). Extend the patch upslope past the Metal Valley Flashing at least 150 mm (6”).
(6) Shingles (field)
(7) Shingle Ridge Cap
(8) Split Ridge Cap Shingle Transition
Required to tie the ridge caps into the adjacent roof field shingles.

2 RELATED WORK BY OTHERS

(A) Acceptable Deck

NOTE: See the Standard for additional requirements.
