BA Versasnap (FF 100)
by Bothwell-Accurate Company (B.C.) Ltd.
| The metal panel listed and described below is accepted for use in the RoofStar Guarantee Program. |
The roofing assembly / material information published below and in the RCABC Roofing Practices Manual DOES NOT represent a complete set of the manufacturer's published data, nor does it represent a detailed specification. The preparation of a detailed specification is the responsibility of the design authority. For more information about this product or system, consult the manufacturer. |
OVERVIEW
The FF 100 (BA-Versasnap) standing seam panel is formed with an on-site/in shop continuous metal roofing panel roll forming machine ( New Tech SS Multipro ). This machine produces a standing seam panel with a seam height of 23.4 mm (7/8") and profiles can vary from 305 mm (12") wide up to 635 mm (24") wide. This machine also produces SS 675 (BA-Versaclip), SS 100 (BA-Versaspan 100), SS 150 (BA-Versaspan 150).
On-site roll forming provides for the elimination of end laps with continuous panel forming capabilities. Note that the maximum length of this panel is restricted in the "RGC Standard for Architectural Sheet Metal (ASM) Roofs" to 10 m (30') because of the coefficient of expansion (Ref. Article 9.2.1.1., Sentence (8)). This panel is also suitable for application only on a solid substrate (uninsulated roofs).
SYSTEM DESCRIPTION
- General: The BA-Versasnap (FF 100) is standing seam concealed fastener roof panel. The maximum spacing of screws in the built-in nailing strip (flange) is 635 mm (24")
- Range of application: Installed on wood or steel sloped roofs, in commercial, institutional, industrial and residential construction. For re-roofing or new construction.
- Panel Attachment: Fastening is site specific, engineer must confirm fixing specifications.
- Fasteners (Screws): Fasteners used to attach panel clips to plywood to be No. 10-12 by 25 mm (1") long pancake head, No. 2 Phillips drive, A-point, coated steel screw. Minimum two fasteners per clip to be used.
- Panel Clips: One piece assembly 43.75 mm (1-3/4") wide, 31 mm (1-1/4") high. Minimum thickness 0.022 in. (No. 22 MSG). Clips spaced maximum 900 mm (36") O.C., fastened to plywood deck.
- Deck Requirements: in keeping with the Standard for Architectural Sheet Metal (ASM) Systems.
PROFILE

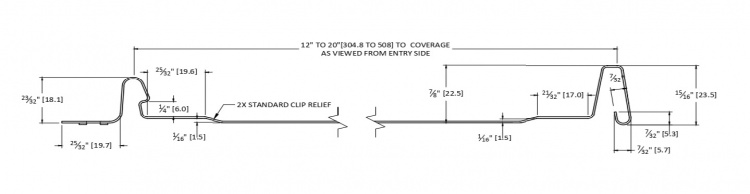

| BA-Versasnap (FF 100) Standing Seam Panel |
|---|
|
TECHNICAL DATA SHEET
Click below for the Technical Data Sheet
SITE CONDITIONS
Minimum roof slope is 1:4 (3" in 12"). Severe conditions (heavy snow or ice) minimum slope is 1:1.5 (8" in 12").
PERFORMANCE REQUIREMENTS
- Wind Uplift Resistance: Panel securement shall conform to the requirements in Part 3 of the Standard for Architectural Sheet Metal (ASM) Systems.
- Materials:RoofStar (RGC) accepted metal panel systems shall be formed of steel conforming to the requirements published in Section 9.2. of the Standard.
